Gbona Air Welding Gun
Ibọn afẹfẹ kọọkan kọọkan gbọdọ faramọ idanwo meji ti iṣẹ 100% ati aabo ṣaaju ki o to lọ kuro ni ile-iṣẹ. Orisirisi awọn nozzles ati awọn awoṣe le pade oriṣiriṣi awọn ohun elo alapapo, ati jinna pade awọn aini awọn alabara.
Ohun elo
Awọn atẹle ni awọn ohun elo oriṣiriṣi ti ibon afẹfẹ gbona:
- Awọn apoti ṣiṣu
- Mu ṣiṣẹ
- TPO, PVC ati awọ ilu Orule Bitumen
- gbigbe
Alurinmorin Tarpaulin ati Banner
- Gbigbona
- Alurinmorin PVC pakà
- Ṣiṣẹda
Àwọn ìṣọra

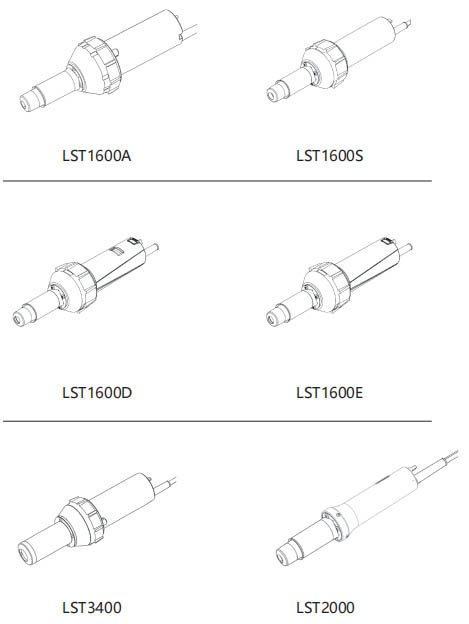

Ọja Series
Jọwọ jẹrisi pe ẹrọ naa ti wa ni pipa ati ti yọ kuro ṣaaju titu ẹrọ alurinmorin, nitorina ki o ma ṣe jẹ farapa nipasẹ awọn okun onirin tabi awọn paati inu ẹrọ naa.
Ẹrọ alurinmorin n ṣe iwọn otutu giga ati giga ooru, eyiti o le fa ina tabi bugbamu nigba lilo ti ko tọ, paapaa nigbati o sunmo awọn ohun elo ijona tabi gaasi ibẹjadi.
Jọwọ maṣe fi ọwọ kan iwo afẹfẹ ati nozzle (nigba iṣẹ alurinmorin tabi nigbati ẹrọ alurinmorin ko ti tutu tutu patapata), ki o ma ṣe doju imu lati yago fun awọn sisun.
Agbara folti agbara gbọdọ baamu folti ti a ti pinnu samisi lori ẹrọ alurinmorin ati ki o ni igbẹkẹle ilẹ. Sopọ ẹrọ alurinmorin si iho pẹlu adaorin ilẹ to ni aabo.
Ni ibere lati rii daju aabo awọn oniṣẹ ati igbẹkẹle isẹ ti ẹrọ, ipese agbara ni aaye ikole gbọdọ wa ni ipese pẹlu ipese agbara ti ofin ati oluabo jijo.
Awọn alurinmorin ẹrọ gbọdọ wa ni o ṣiṣẹ labẹ awọn ti o tọ Iṣakoso ti awọn onišẹ, bibẹkọ ti o le fa ijona tabi bugbamu nitori otutu giga.
Iwọn LST1600
LST1600 Awọn ẹya akọkọ
| Awoṣe | LST1600A | LST1600S |
| Won won Foliteji | 230 V / 120 V | 230 V / 120 V |
| Igbohunsafẹfẹ | 50/60 Hz | 50/60 Hz |
| Agbara | 1600 W | 1600 W |
| Igba otutu | 20 - 620 ℃ | 20 - 620 ℃ |
| Iwọn didun afẹfẹ | Max 180 L / min | Max 180 L / min |
| Ariwo | ≤ 65 Db | ≤ 65 Db |
| Apapọ iwuwo | 1.1 Kg | 1,05 Kg |
| Moto | Fẹlẹ | Fẹlẹ |
| Mu Dia | mm 65 mm | mm 58mm |
| Overheat Idaabobo | Aiyipada | Aiyipada |
| Iṣakoso otutu | Ṣii lupu | Ṣii lupu |
| Iwe-ẹri | CE | CE |
| Atilẹyin ọja | Ọdún kan | Ọdún kan |
| Awoṣe | LST1600D | LST1600E |
| Won won Foliteji | 230 V / 120 V | 230 V / 120 V |
| Igbohunsafẹfẹ | 50/60 Hz | 50/60 Hz |
| Agbara | 1600 W | 1600 W |
| Igba otutu | 20 - 620 ℃ | 20 - 620 ℃ |
| Iwọn didun afẹfẹ | Max 180 L / min | Max 180 L / min |
| Ariwo | ≤ 65 Db | ≤ 65 Db |
| Apapọ iwuwo | 1,05Kg | 1,05 Kg |
| Moto | Fẹlẹ | Fẹlẹ |
| Mu Dia | mm 65 mm | mm 58mm |
| Overheat Idaabobo | Aiyipada | Aiyipada |
| Iṣakoso otutu | Lupu ti a ti pari | Ṣii lupu |
| Iwe-ẹri | CE | CE |
| Atilẹyin ọja | Ọdún kan | Ọdún kan |

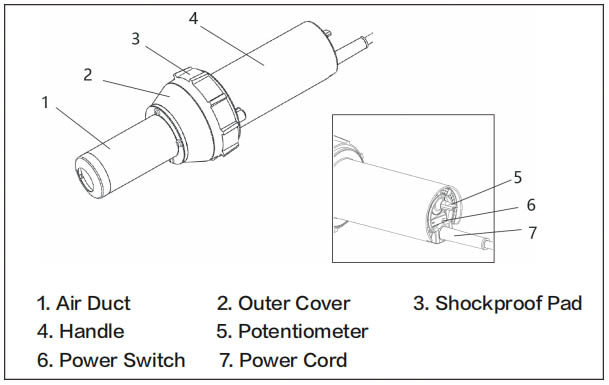

1. Iwo afẹfẹ
2. Ideri lode
3. Shockproof Paadi
4. Mu
5. Ikun agbara
6. Yipada Agbara 7. Okun Agbara
Iwọn LST3400
Iwọn LST2000
| Awoṣe | LST3400 |
| Won won Foliteji | 230 V / 120 V |
| Igbohunsafẹfẹ | 50/60 Hz |
| Agbara | 3400 W |
| Igba otutu | 20 - 620 ℃ |
| Iwọn didun afẹfẹ | Max 360 L / min |
| Ariwo | ≤ 65 Db |
| Apapọ iwuwo | 1.2 Kg |
| Moto | Fẹlẹ |
| Mu Dia | mm 65 mm |
| Overheat Idaabobo | Aiyipada |
| Iṣakoso otutu | Ṣii lupu |
| Iwe-ẹri | CE |
| Atilẹyin ọja | Ọdún kan |
LST3400 Awọn ẹya akọkọ
| Awoṣe | LST2000 |
| Won won Foliteji | 230 V / 120 V |
| Igbohunsafẹfẹ | 50/60 Hz |
| Agbara | 1600 W |
| Igba otutu | 20 - 620 ℃ |
| Ariwo | ≤ 65 Db |
| Apapọ iwuwo | 2.4 Kg |
| Mu Dia | mm 42 mm |
| Overheat Idaabobo | Aiyipada |
|
Air tube
|
3m
|
| Iṣakoso otutu | Ṣii lupu |
| Iwe-ẹri | CE |
| Atilẹyin ọja | Ọdún kan |

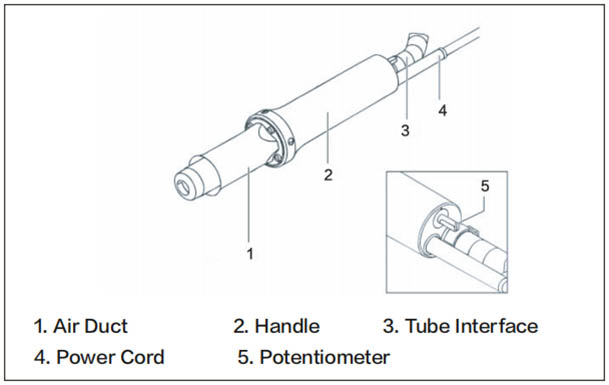

LST2000 Awọn ẹya akọkọ

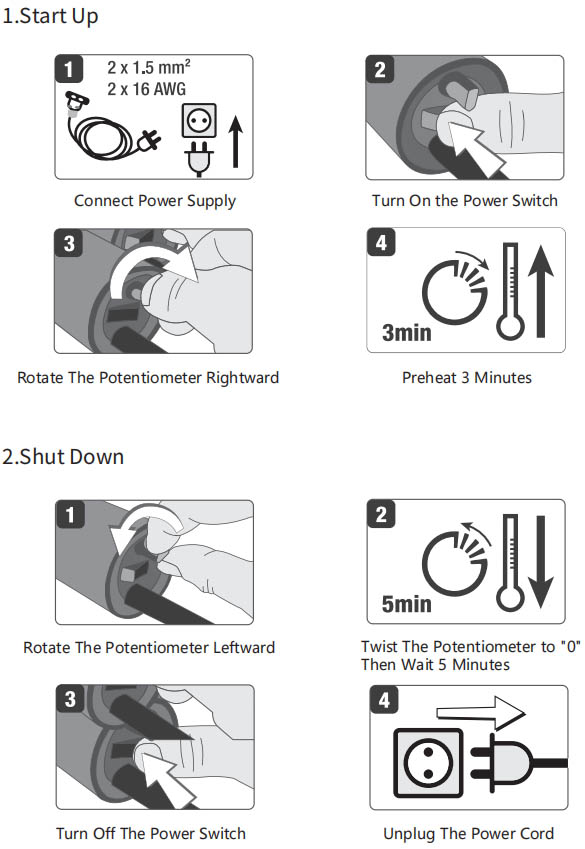

Isẹ Awọn igbesẹ
Rirọpo Apo Alapapo
Ninu Ajọ Ajọ
Atilẹyin ọja

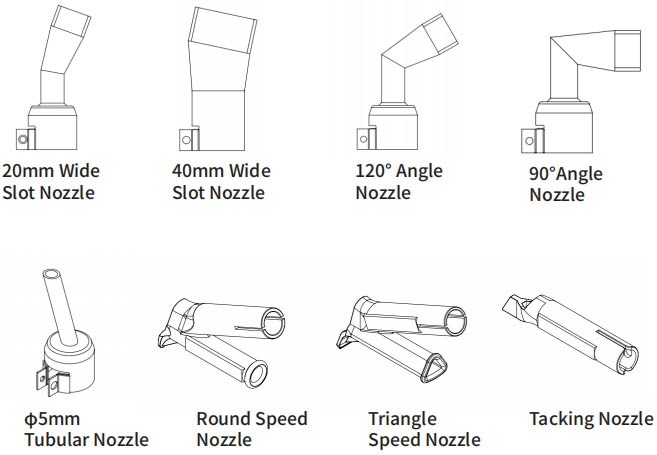

Alurinmorin Nozzles
• Ọja yii ṣe onigbọwọ igbesi aye igbesi aye oṣu mejila lati ọjọ ti o ta si awọn alabara.
A yoo jẹ iduro fun awọn ikuna ti o ṣẹlẹ nipasẹ ohun elo tabi awọn abawọn iṣelọpọ. A yoo tunṣe tabi rọpo awọn ẹya alebu ni lakaye wa lati pade atilẹyin ọja awọn ibeere.
• Iṣeduro didara ko pẹlu ibajẹ si awọn ẹya ti o wọ (awọn eroja alapapo, erogba gbọnnu, biarin, ati be be lo), bibajẹ tabi awọn alebu ṣẹlẹ nipasẹ aibojumu mu tabi itọju, ati ibajẹ ti o fa nipasẹ awọn ọja ja bo. Lilo alaibamu ati laigba aṣẹ iyipada ko yẹ ki o bo nipasẹ atilẹyin ọja.
Itọju
Itọju
• O ti ni iṣeduro niyanju lati fi ọja ranṣẹ si ile-iṣẹ Lesite tabi ile-iṣẹ atunṣe ti a fun ni aṣẹ fun ayewo ati atunṣe ọjọgbọn.
• Awọn ẹya apoju Lesite atilẹba nikan ni a gba laaye.
